The Spacious and Luxurious Home Lift With Style
Stiltz Trio Alta Cost $30-$35k | Lead Time 6-8 Weeks | Will Require Separate Contractor For Building Modifications

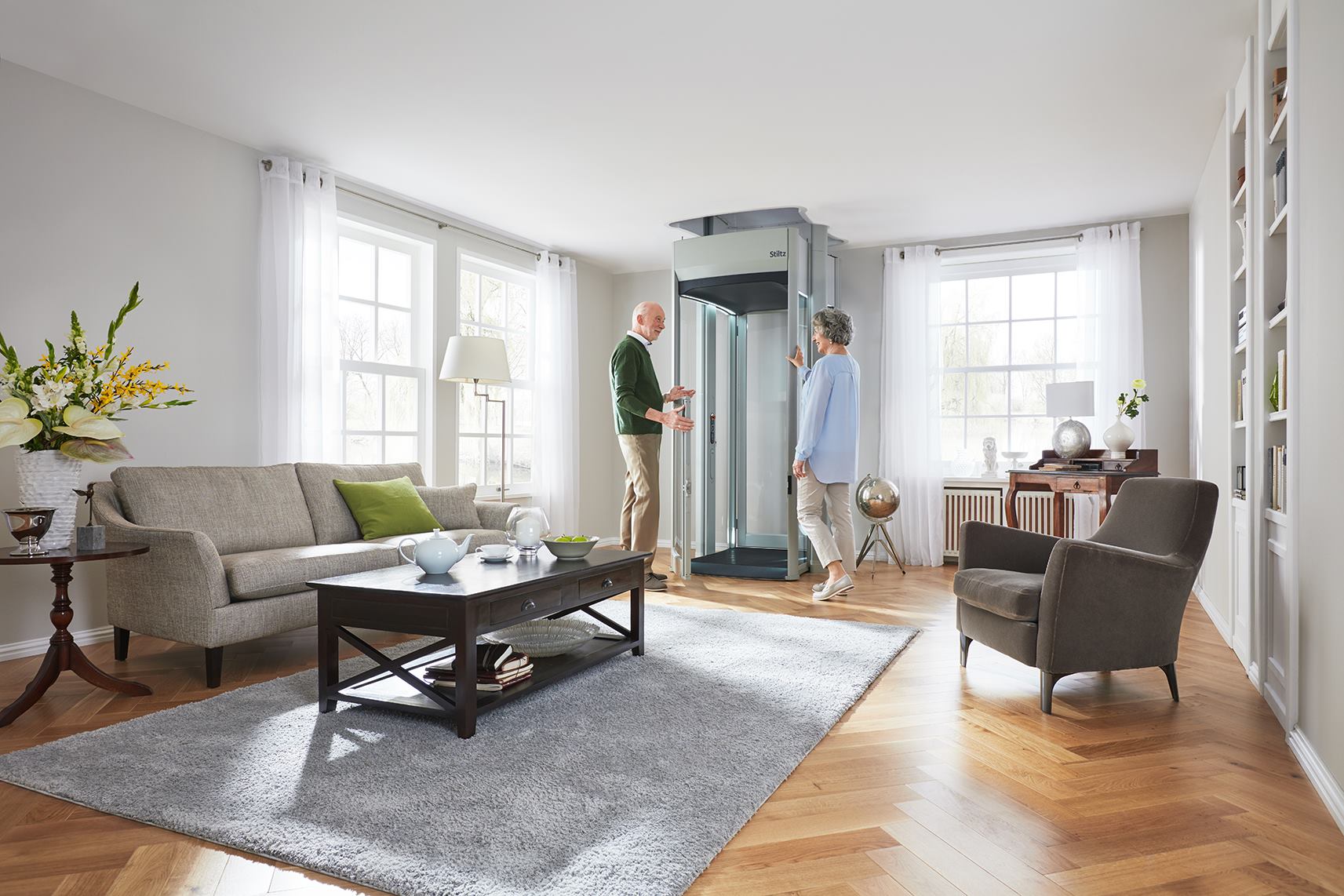

The Trio Alta is a large through floor home lift that can also be used for wheelchair access and mobility. Manufactured with this in mind the elevator has a sloped front for a smooth transition into the cab from landing. The elevator is also designed to be slightly wider in the front for an easier entry and exit doubling as the perfect wheelchair lift. Elevate living in your home with this innovative elevator and gain the freedom of mobility for many years to come. For more information about the Stiltz shaftless elevators contact Innovative Lifts at 866-325-5438. To view the images below in greater detail just click for a larger version. Want a lift that takes less space take a look at this small home elevator that can even fit in a corner.
Glass elevator look at a fraction of the price.
Without a need to build a shaft or have a supporting wall, the lift will fit in almost any home. The clear back and sides of the Stiltz Alta mean you can even place it in front of a window and not lose natural light into the room too. Learn more about residential elevators.
Like to see more? Additional Stiltz elevator installation pictures for the Trio Alta model.
Trio Alta Technical Specifications and drawings
Specifications for the Trio Alta model installed in an open environment.
Footprint: Minimum 55″depth x 42” width. We also recommend 2-3″ of extra space to the rear and side of the lift if available.
Drive System: Wire rope drum, braked gear motor drive
Power Supply: 220 – 240VAC / 5 Amps
Maximum Load: 485 lbs
Maximum Travel 13’-1”
Operation: Constant pressure controls
Entrance Safety: Full-height light curtain / motion sensor – optional for full-height door
Maximum Speed: 6″ per second
Warranty: 2 year limited parts
Rope Diameter: 6mm galvanized steel rope
Additional safety sensors – out of balance & overload, overspeed detection and light curtain
Cab Lighting: LED down lights
Landing Call Stations: 2 Wireless remote controls than can call and send the lift.
Operation – Constant pressure controls
Configuration options – Single entry , enter exit same side and Thru cab with two doors
